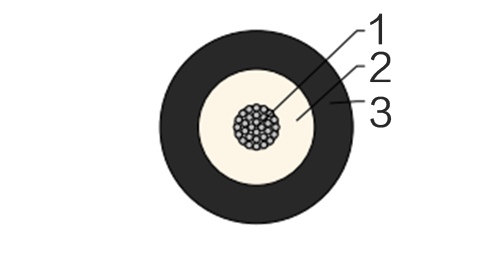

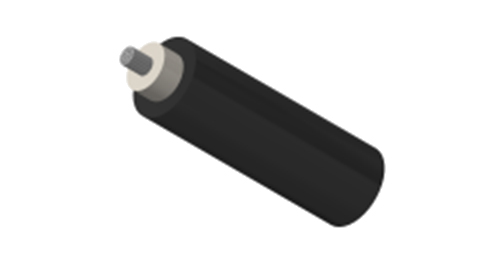

| Conductor | Flexible tinned annealed copper wires (red copper only for 150 °C core temperature) class 5 according to HD 383 |
| Insulation | Silicon rubber according to EN 50382-1 (EI 112) |
| Outer Sheath | LSZH elastomeric compound according to EN 50382-1 (EM 105, EM 106 or EM 107) |
| Nominal Voltage | 1.8/3 kV or 3.6/6 kV |
| Max. Conductor Temperature | 120°C /150°C (fixed installation) |
| Min. Permissible Ambient Temperature | -25°C/-40°C (fixed installation) |
| Bending Radius | 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm) |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| Nominal Cross- Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Average Sheath Thickness | Overall Diameter | Weight | Max.Conductor Resistance | Min. Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Tinned Conductor | Plain Conductor | |||||||||
| Min. | Max. | 20 °C | 20 °C | 20 °C | 150 °C | |||||
| mm² | mm | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 1.3 | 1.4 | 6.8 | 7.9 | 70 | 13.7 | 13.3 | 670 | 1.30 |
| 2.5 | 1.95 | 1.3 | 1.4 | 7.2 | 8.4 | 80 | 8.21 | 7.98 | 570 | 1.10 |
| 4 | 2.5 | 1.3 | 1.4 | 7.7 | 9.0 | 100 | 5.09 | 4.95 | 480 | 0.90 |
| 6 | 3.0 | 1.3 | 1.4 | 8.2 | 9.6 | 120 | 3.39 | 3.30 | 420 | 0.80 |
| 10 | 3.9 | 1.5 | 1.4 | 9.4 | 11.0 | 190 | 1.95 | 1.91 | 380 | 0.70 |
| 16 | 5.0 | 1.5 | 1.4 | 10.5 | 12.2 | 240 | 1.24 | 1.21 | 310 | 0.60 |
| 25 | 6.4 | 1.8 | 1.4 | 12.3 | 14.4 | 340 | 0.795 | 0.780 | 300 | 0.60 |
| 35 | 7.7 | 1.8 | 1.4 | 13.6 | 15.9 | 440 | 0.565 | 0.554 | 250 | 0.50 |
| 50 | 9.2 | 1.8 | 1.4 | 15.0 | 17.5 | 580 | 0.393 | 0.386 | 220 | 0.40 |
| 70 | 11.0 | 1.8 | 1.5 | 16.8 | 19.7 | 780 | 0.277 | 0.272 | 200 | 0.40 |
| 95 | 12.5 | 2.2 | 1.5 | 19.0 | 22.2 | 1020 | 0.210 | 0.206 | 190 | 0.40 |
| 120 | 14.2 | 2.2 | 1.6 | 20.8 | 24.3 | 1270 | 0.164 | 0.161 | 180 | 0.30 |
| 150 | 15.8 | 2.2 | 1.6 | 22.3 | 26.1 | 1560 | 0.132 | 0.129 | 160 | 0.30 |
| 185 | 17.5 | 2.4 | 1.7 | 24.5 | 28.6 | 1890 | 0.108 | 0.106 | 160 | 0.30 |
| 240 | 20.1 | 2.4 | 1.8 | 27.1 | 31.7 | 2480 | 0.0817 | 0.0801 | 140 | 0.20 |
| 300 | 22.5 | 2.4 | 1.9 | 29.5 | 34.6 | 2990 | 0.0654 | 0.0641 | 120 | 0.20 |
| 400 | 25.8 | 2.6 | 2.0 | 33.2 | 38.9 | 4010 | 0.0495 | 0.0486 | 120 | 0.20 |
(a)= For information, indicative only
| Nominal Cross- Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Average Sheath Thickness | Overall Diameter | Weight | Max.Conductor Resistance | Min. Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Tinned Conductor | Plain Conductor | |||||||||
| Min. | Max. | 20 °C | 20 °C | 20 °C | 150 °C | |||||
| mm² | mm | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ x km | MΩ x km |
| 2.5 | 1.95 | 2.6 | 1.4 | 9.9 | 11.6 | 130 | 8.21 | 7.98 | 870 | 1.70 |
| 4 | 2.5 | 2.6 | 1.4 | 10.4 | 12.2 | 150 | 5.09 | 4.95 | 750 | 1.50 |
| 6 | 3.0 | 2.6 | 1.4 | 10.9 | 12.8 | 180 | 3.39 | 3.30 | 670 | 1.30 |
| 10 | 3.9 | 2.6 | 1.4 | 11.8 | 13.8 | 240 | 1.95 | 1.91 | 570 | 1.10 |
| 16 | 5.0 | 2.6 | 1.4 | 12.8 | 15.0 | 300 | 1.24 | 1.21 | 480 | 0.90 |
| 25 | 6.4 | 2.9 | 1.4 | 14.7 | 17.2 | 410 | 0.795 | 0.780 | 430 | 0.80 |
| 35 | 7.7 | 2.9 | 1.4 | 15.9 | 18.6 | 510 | 0.565 | 0.554 | 380 | 0.70 |
| 50 | 9.2 | 2.9 | 1.5 | 17.5 | 20.5 | 660 | 0.393 | 0.386 | 330 | 0.60 |
| 70 | 11.0 | 2.9 | 1.5 | 19.2 | 22.4 | 870 | 0.277 | 0.272 | 280 | 0.50 |
| 95 | 12.5 | 2.9 | 1.6 | 20.8 | 24.3 | 1100 | 0.210 | 0.206 | 250 | 0.50 |
| 120 | 14.2 | 2.9 | 1.6 | 22.4 | 26.2 | 1330 | 0.164 | 0.161 | 230 | 0.40 |
| 150 | 15.8 | 2.9 | 1.7 | 24.1 | 28.2 | 1640 | 0.132 | 0.129 | 210 | 0.40 |
| 185 | 17.5 | 3.2 | 1.8 | 26.4 | 30.9 | 1990 | 0.108 | 0.106 | 210 | 0.40 |
| 240 | 20.1 | 3.4 | 1.9 | 29.4 | 34.4 | 2620 | 0.0817 | 0.0801 | 190 | 0.30 |
| 300 | 22.5 | 3.4 | 1.9 | 31.7 | 37.1 | 3120 | 0.0654 | 0.0641 | 170 | 0.30 |
| 400 | 25.8 | 3.4 | 2.0 | 35.0 | 40.9 | 4150 | 0.0495 | 0.0486 | 150 | 0.30 |
(a)= For information, indicative only
