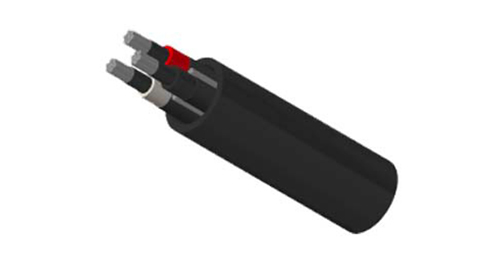

The SHD-GC 15kV three-core circular portable power cable is an industrial-grade heavy-duty cable designed for harsh environments and satisfies high-power electrical demands. It is widely used in the following scenarios: coal mining, mining equipment, heavy-duty mobile equipment, and industrial power supply.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

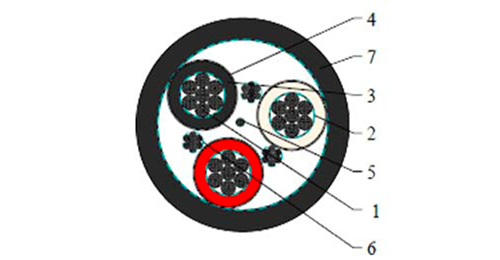

| Conductors | Stranded annealed tinned copper conductor. |
|---|---|
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting tape + Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. |
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
| Minimum Bending Radius | 8×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores × AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×2 | 259 | 6 | 8 | 0.210 | 5.3 | 0.235 | 6.0 | 2.41 | 61.2 | 3572 | 5529 | 164 |
| 3×1 | 259 | 5 | 8 | 0.210 | 5.3 | 0.235 | 6.0 | 2.52 | 64.0 | 4060 | 6042 | 187 |
| 3×1/0 | 259 | 4 | 8 | 0.210 | 5.3 | 0.250 | 6.4 | 2.64 | 67.0 | 4495 | 6927 | 215 |
| 3×2/0 | 329 | 3 | 8 | 0.210 | 5.3 | 0.250 | 6.4 | 2.73 | 69.3 | 5010 | 7783 | 246 |
| 3×3/0 | 413 | 2 | 8 | 0.210 | 5.3 | 0.265 | 6.7 | 2.90 | 73.7 | 5995 | 8922 | 283 |
| 3×4/0 | 532 | 1 | 8 | 0.210 | 5.3 | 0.265 | 6.7 | 3.05 | 77.5 | 6860 | 10209 | 325 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381
