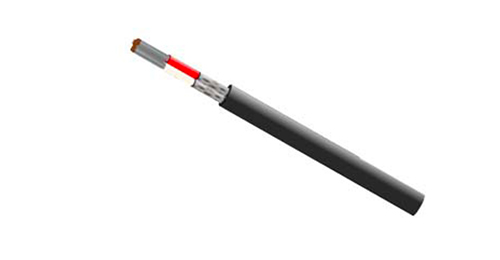

ICEA S-75-381 Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 2kV

APPLICATIONSHD-GC 2kV Mining Heavy-Duty PowerCable: Engineered for DemandingIndustrial EnvironmentsThe SHD-GC series is a heavy-duty, three-core, round portable power cable rated at 2kV, specifically designed for the extreme conditions encountered in …

Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 2kV.pdf Contact us

Previous: ICEA S-75-381 Type MP-GC Three-Conductor Mine Power Feeder Cable, CPE Jacket, 5kV Next: ICEA S-75-381 Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 2kV

APPLICATION

SHD-GC 2kV Mining Heavy-Duty PowerCable: Engineered for DemandingIndustrial Environments

The SHD-GC series is a heavy-duty, three-core, round portable power cable rated at 2kV, specifically designed for the extreme conditions encountered in mining and heavy industrial applications . Its robust CPE jacket delivers exceptional resistance to abrasion, tear, and chemicals , ensuring reliable performance under harsh operating conditions .

STANDARDS

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

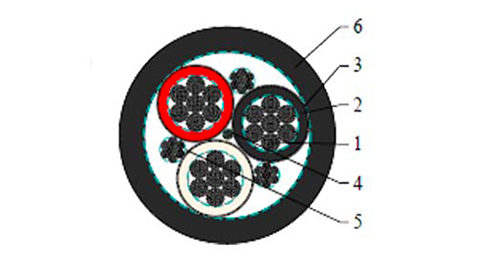

CONSTRUCTION

Conductors	Stranded annealed tinned copper conductor.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Tinned copper/textile braid.
Ground Check Conductor	Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor.
Jacket	Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

OPTIONS

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

MECHANICAL AND THERMAL PROPERTIES

Minimum Bending Radius	6×OD
Maximum Conductor Operating Temperature	+90℃

DIMENSIONS AND WEIGHT

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×6	133	10	10	0.07	1.8	0.155	3.9	1.29	32.8	1130	1682	93
3×4	259	8	10	0.07	1.8	0.155	3.9	1.40	35.6	1460	2173	122
3×3	259	7	10	0.07	1.8	0.170	4.3	1.51	38.3	1680	2500	140
3×2	259	6	10	0.07	1.8	0.170	4.3	1.59	40.4	1990	2961	159
3×1	259	5	8	0.08	2.0	0.190	4.8	1.76	44.7	2385	3549	184
3×1/0	266	4	8	0.08	2.0	0.190	4.8	1.86	47.2	2765	4115	211
3×2/0	329	3	8	0.08	2.0	0.205	5.2	2.00	50.8	3255	4844	243
3×3/0	418	2	8	0.08	2.0	0.205	5.2	2.13	54.1	3890	5789	279
3×4/0	532	1	8	0.08	2.0	0.220	5.6	2.31	58.7	4720	7024	321
3×250	627	1/0	6	0.095	2.4	0.220	5.6	2.51	63.8	5460	8125	355
3×300	741	1/0	6	0.095	2.4	0.235	6.0	2.68	68.1	6395	9517	398
3×350	888	2/0	6	0.095	2.4	0.235	6.0	2.81	71.4	7280	10834	435
3×500	1221	4/0	6	0.095	2.4	0.265	6.7	3.19	81.0	9820	14614	536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
