These power cables are mainly for use in fixed applications.
AS/NZS 5000.1
AS1125
AS3808

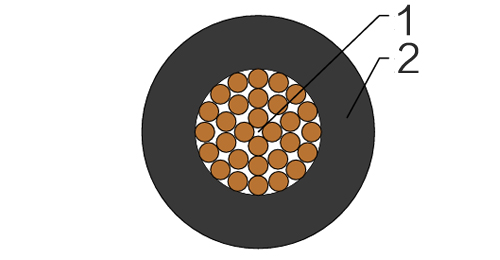

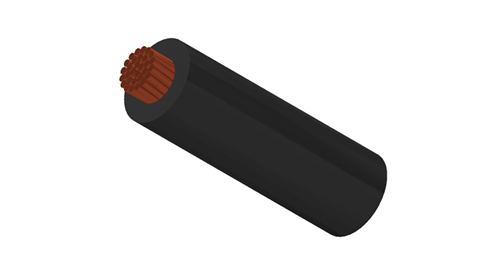

Conductor : Nominal 0 .2mm stranded flexible plain copper wire to AS 1125
Insulation : X-HF-110 to AS3808
Colours : Black, Red, Blue, White, Green/Yellow
| Conductor Size | Electrical Resistance @20°C | Current Ratìng' AMPS 2 single cores | Voltage Drop mV 1Am at Max operating Temperature | |
|---|---|---|---|---|
| mm² | Ohm/km | Single Phase | Three Phase | |
| 0.5 | 39 | 7 | 125 | 107 |
| 1.0 | 19.500 | 25 | 57.4 | 49.70 |
| 1.5 | 13.300 | 32 | 36.85 | 31 .90 |
| 2.5 | 7.980 | 45 | 20.1 | 17.40 |
| 4.0 | 4.950 | 59 | 12.5 | 10.80 |
| 6.0 | 3.300 | 75 | 8.35 | 7.23 |
| 10 | 1.910 | 105 | 4.97 | 4.30 |
| 16 | 1.210 | 135 | 3.13 | 2.71 |
| 25 | 0.780 | 185 | 1.99 | 1.72 |
| 35 | 0.554 | 225 | 1.44 | 1.25 |
| 50 | 0.386 | 275 | 1.07 | 0.929 |
| 70 | 0.272 | 350 | 0.769 | 0.657 |
| 95 | 0.206 | 435 | 0.567 | 0.491 |
| 120 | 0.161 | 510 | 0.465 | 0.403 |
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg/100m | |
| 0.5 | 1 | 16/0.2 | 0.7 | 2.40 | 1.10 |
| 1.0 | 1 | 32/0.2 | 0.7 | 2.80 | 1.50 |
| 1.5 | 1 | 30/0.25 | 0.7 | 3.10 | 2.00 |
| 2.5 | 1 | 50/0.25 | 0.7 | 3.60 | 2.90 |
| 4.0 | 1 | 128/0.2 | 0.7 | 4.20 | 4.40 |
| 6.0 | 1 | 192/0.2 | 0.7 | 4.80 | 6.60 |
| 10 | 1 | 322/0.2 | 0.7 | 5.80 | 10.50 |
| 16 | 1 | 511/0.2 | 0.7 | 6.90 | 16.10 |
| 25 | 1 | 784/0.2 | 0.9 | 8.70 | 28.80 |
| 35 | 1 | 1120/0.2 | 0.9 | 9.60 | 36.30 |
| 50 | 1 | 1568/0.2 | 1.0 | 11.20 | 49.50 |
| 70 | 1 | 2240/0.2 | 1.1 | 13.20 | 70.10 |
| 95 | 1 | 3040/0.2 | 1.1 | 15.00 | 94.20 |
| 120 | 1 | 3800/0.2 | 1.2 | 16.70 | 116.80 |
