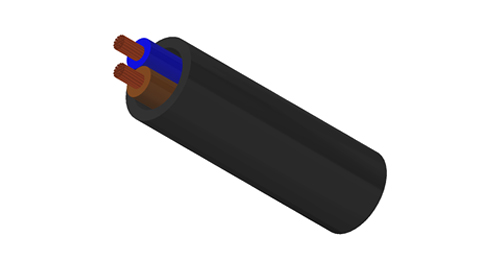

These rubbers insulated and sheathed electric cables, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”).
The cables are suitable for the stripping force on automatic machines and for low temperature environments.
HD 22.12, CEI 20-19/12, NF C 32-102-4

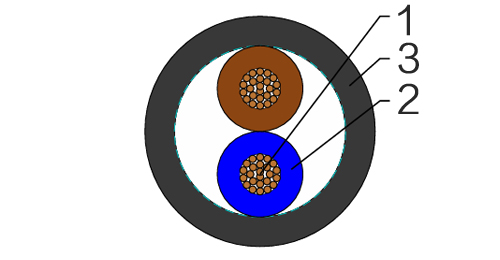

Technical Characteristics
| Bare/Tinned copper strand conductor | |
| acc. to DIN VDE 0295 class 5. IEC 60228 class 5 | |
| Insulation | EPR rubber type EI7 |
| Color coded to VDE 0293-308(3 conductors and above with yellow/green wire) | |
| Sheath | EPR rubber type EM6 |
| Sheath color | normally black |
| Working voltage | H05BB-F | 300/500V |
| H07BB-F | 450/750V | |
| Test voltage | H05BB-F | 2000V |
| H07BB-F | 2500V | |
| Flexing bending radius | 4 × O | |
| Static bending radius | 3 × O | |
| Operating temperature | H05BB-F | - 40℃- + 60℃ |
| H07BB-F | - 25℃- + 90℃ | |
| Short circuit temperature | 250℃ | |
| Flame retardant | VDE 0482-332-1-2/IEC 60332-1 | |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | |
| H05BB-F | |||||
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.3 | 53 |
| 17(32/32) | 2x1 | 0.6 | 0.9 | 6.8 | 64 |
| 16(30/30) | 2x1.5 | 0.8 | 1.0 | 8.3 | 95 |
| 14(50/30) | 2x2.5 | 0.9 | 1.1 | 9.8 | 140 |
| 18(24/32) | 3x0.75 | 0.6 | 0.9 | 6.8 | 65 |
| 17(32/32) | 3x1 | 0.6 | 0.9 | 7.2 | 77 |
| 16(30/30) | 3x1.5 | 0.8 | 1 | 8.8 | 115 |
| 14(50/30) | 3x2.5 | 0.9 | 1.1 | 10.4 | 170 |
| 12(56/28) | 3 x 4 | 1 | 1.2 | 12.2 | 240 |
| 10(84/28) | 3 x 6 | 1 | 1.4 | 13.6 | 320 |
| 18(24/32) | 4x0.75 | 0.6 | 0.9 | 7.4 | 80 |
| 17(32/32) | 4x1 | 0.6 | 0.9 | 7.8 | 95 |
| 16(30/30) | 4x1.5 | 0.8 | 1.1 | 9.8 | 145 |
| 14(50/30) | 4x2.5 | 0.9 | 1.2 | 11.5 | 210 |
| 12(56/28) | 4 x 4 | 1 | 1.3 | 13.5 | 300 |
| 10(84/28) | 4 x 6 | 1 | 1.5 | 15.4 | 405 |
| 18(24/32) | 5x0.75 | 0.6 | 1 | 8.3 | 100 |
| 17(32/32) | 5x1 | 0.6 | 1 | 8.7 | 115 |
| 16(30/30) | 5x1.5 | 0.8 | 1.1 | 10.7 | 170 |
| 14(50/30) | 5x2.5 | 0.9 | 1.3 | 12.8 | 255 |
| H07BB-F | |||||
| 17(32/32) | 2×1 | 0.8 | 1.3 | 8.20 | 89 |
| 16(30/30) | 2×1.5 | 0.8 | 1.5 | 9.10 | 113 |
| 14(50/30) | 2×2.5 | 0.9 | 1.7 | 10.85 | 165 |
| 17(32/32) | 3×1 | 0.8 | 1.4 | 8.90 | 108 |
| 16(30/30) | 3×1.5 | 0.8 | 1.6 | 9.80 | 138 |
| 14(50/30) | 3×2.5 | 0.9 | 1.8 | 11.65 | 202 |
| 17(32/32) | 4×1 | 0.8 | 1.5 | 9.80 | 134 |
| 16(30/30) | 4×1.5 | 0.8 | 1.7 | 10.85 | 171 |
| 14(50/30) | 4×2.5 | 0.9 | 1.9 | 12.80 | 248 |
| 17(32/32) | 5×1 | 0.8 | 1.6 | 10.80 | 172 |
| 16(30/30) | 5×1.5 | 0.8 | 1.8 | 11.90 | 218 |
