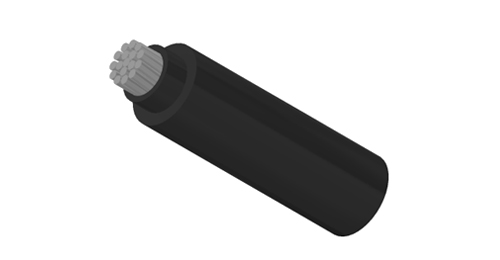

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
AS/NZS 5000.1
AS/NZS 3008
AS1125

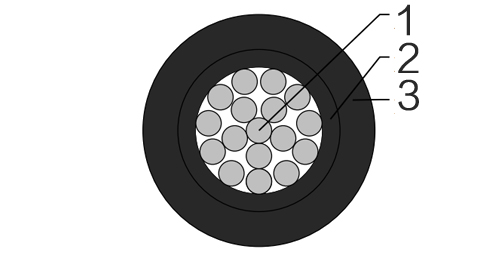

| Conductor | Aluminum/plain annealed copper |
| Insulation | XLPE X-90 |
| Insulation colour: | black, other colors are available upon request |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | In conduit In Air A | Buried In Ducts A | In conduit In Air A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @90°C Ohm/km | Reactance (trefoil) Ohm/km | 3 phase Voltage Drop mV/A |
| Aluminum | ||||||||
| 16 | 70 | 74 | 74 | 86 | 1.91 | 2.45 | 0.106 | 4.25 |
| 25 | 99 | 96 | 100 | 112 | 1.20 | 1.54 | 0.102 | 2.67 |
| 35 | 116 | 118 | 121 | 134 | 0.868 | 1.11 | 0.0982 | 1.94 |
| 50 | 138 | 139 | 149 | 161 | 0.641 | 0.822 | 0.0924 | 1.43 |
| 70 | 176 | 177 | 193 | 198 | 0.443 | 0.568 | 0.0893 | 0.997 |
| 95 | 215 | 209 | 237 | 241 | 0.320 | 0.411 | 0.0868 | 0.727 |
| 120 | 253 | 241 | 281 | 278 | 0.253 | 0.325 | 0.0844 | 0.582 |
| 150 | 286 | 273 | 319 | 310 | 0.206 | 0.265 | 0.0844 | 0.482 |
| 185 | 330 | 310 | 374 | 358 | 0.164 | 0.212 | 0.0835 | 0.394 |
| 240 | 396 | 369 | 440 | 428 | 0.125 | 0.162 | 0.0818 | 0.314 |
| 300 | 457 | 428 | - | 482 | 0.100 | 0.130 | 0.0809 | 0.266 |
| 400 | 534 | 487 | - | 567 | 0.0778 | 0.103 | 0.0802 | 0.226 |
| 500 | 616 | 578 | - | 653 | 0.0605 | 0.0813 | 0.0796 | 0.197 |
| 630 | 726 | 663 | - | 770 | 0.0469 | 0.0649 | 0.0787 | 0.177 |
| Copper | ||||||||
| 16 | 86 | 95 | 95 | 112 | 1.15 | 1.47 | 0.106 | 2.550 |
| 25 | 121 | 123 | 127 | 144 | 0.727 | 0.927 | 0.102 | 1.620 |
| 35 | 138 | 150 | 160 | 171 | 0.524 | 0.668 | 0.098 | 1.170 |
| 50 | 171 | 182 | 193 | 209 | 0.387 | 0.494 | 0.092 | 0.872 |
| 70 | 209 | 225 | 242 | 257 | 0.268 | 0.342 | 0.089 | 0.615 |
| 95 | 253 | 268 | 286 | 310 | 0.193 | 0.247 | 0.087 | 0.457 |
| 120 | 297 | 310 | 341 | 358 | 0.153 | 0.197 | 0.084 | 0.373 |
| 150 | 341 | 353 | 385 | 401 | 0.124 | 0.160 | 0.084 | 0.316 |
| 185 | 391 | 401 | 440 | 465 | 0.099 | 0.129 | 0.084 | 0.269 |
| 240 | 462 | 471 | 523 | 546 | 0.075 | 0.099 | 0.082 | 0.227 |
| 300 | 534 | 546 | - | 621 | 0.060 | 0.080 | 0.081 | 0.202 |
| 400 | 616 | 621 | - | 717 | 0.047 | 0.065 | 0.080 | 0.183 |
| 500 | 715 | 717 | - | 813 | 0.037 | 0.053 | 0.080 | 0.170 |
| 630 | 836 | 813 | - | 952 | 0.028 | 0.043 | 0.079 | 0.159 |
| Nom. conductor area mm^2 | Main conductor type | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Alumductor | ||||||
| 16 | 7/1.70 | circular | 0.7 | 1.4 | 9.4 | 100 |
| 25 | 7strands | compacted | 0.9 | 1.4 | 11.3 | 160 |
| 35 | 19strands | compacted | 0.9 | 1.4 | 12.5 | 210 |
| 50 | 19strands | compacted | 1.0 | 1.4 | 13.1 | 260 |
| 70 | 19strands | compacted | 1.1 | 1.4 | 15.0 | 330 |
| 95 | 19strands | compacted | 1.1 | 1.5 | 17.0 | 420 |
| 120 | 19strands | compacted | 1.2 | 1.5 | 18.6 | 510 |
| 150 | 19strands | compacted | 1.4 | 1.6 | 20.7 | 640 |
| 185 | 36strands | compacted | 1.6 | 1.6 | 22.7 | 780 |
| 240 | 36strands | compacted | 1.7 | 1.7 | 25.5 | 990 |
| 300 | 37strands | compacted | 1.8 | 1.8 | 28.1 | 1220 |
| 400 | 60strands | compacted | 2.0 | 1.9 | 31.8 | 1600 |
| 500 | 60strands | compacted | 2.2 | 2 | 35.4 | 2000 |
| 630 | 60strands | compacted | 2.4 | 2.2 | 39.6 | 2600 |
| Copper Conductor | ||||||
| 16 | 7/1.70 | circular | 0.7 | 1.4 | 9.4 | 230 |
| 25 | 7/2.14 | circular | 0.9 | 1.4 | 11.3 | 320 |
| 35 | 19/1.53 | circular | 0.9 | 1.4 | 12.5 | 425 |
| 50 | 19strands | compacted | 1.0 | 1.4 | 13.1 | 550 |
| 70 | 19strands | compacted | 1.1 | 1.4 | 15.0 | 760 |
| 95 | 19strands | compacted | 1.1 | 1.5 | 16.8 | 1040 |
| 120 | 19strands | compacted | 1.2 | 1.5 | 18.6 | 1305 |
| 150 | 19strands | compacted | 1.4 | 1.6 | 20.6 | 1585 |
| 185 | 36strands | compacted | 1.6 | 1.6 | 22.7 | 1980 |
| 240 | 36strands | compacted | 1.7 | 1.7 | 25.6 | 2610 |
| 300 | 37strands | compacted | 1.8 | 1.8 | 28.4 | 3340 |
| 400 | 60strands | compacted | 2.0 | 1.9 | 31.7 | 4245 |
| 500 | 60strands | compacted | 2.2 | 2.0 | 35.4 | 5500 |
| 630 | 91strands | compacted | 2.4 | 2.2 | 42.4 | 7220 |
