DIN 5510-2
Electrical Characteristics at 20℃

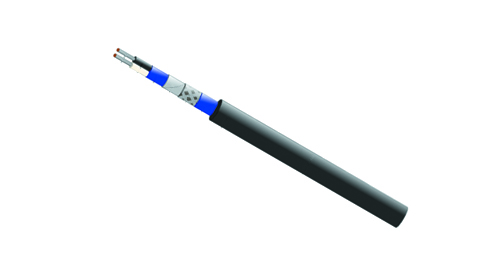

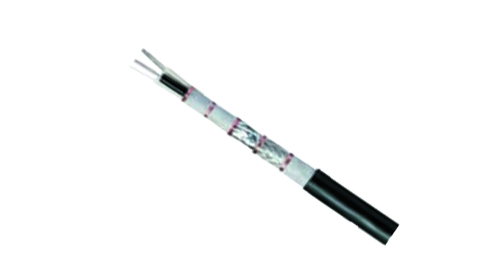

| Conductor | Stranded tinned copper conductor according to IEC 60228 class 5 |
| Insulation | Foam skin-composite PE made of inner cellular layer and outer solid skin |
| Cable Element | Twisted pair |
| Core Wrapping | Plastic tape(s) |
| EMC Screen1 | Aluminium clad polyester foil |
| EMC Screen2 | Tinned copper braid |
| Core Wrapping | Plastic tape(s) |
| Outer Sheath | Cross-linked oil resistant LSZH compound |
| Nominal Cross Section/AWG | mm | 0.62/20 |
| Maximum Conductor Resistance | Ω/km | 33.1 |
| [email protected] | Ω | 120+/-12 |
| Maximum Attenuation @1MHz | dB/km | 10 |
| Maximum Attenuation @2MHz | dB/km | 15 |
| Nominal Voltage Rating | V | 300 |
Minimum Bending Radius: 6×OD (single); 12×OD (multiple)
Temperature Range: -40℃ to +100℃ (during operation); -20℃ +50℃ (during installation)
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm | Nominal Diameter of Strands No/mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|---|
| BRAIL WTB/MVB--02YS(ST+C)H-1P20A | 1×2×0.62 | 19/0.2 | 1.2 | 8.3 | 80 |
