1x75Ohm Coaxial Cable
| CONDUCTOR | 7/0.254mm stranded tinned copper wires |
|---|---|
| INSULATION | Foamed polyethylene. Thickness is 1.46mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 95% |
| SHEATH | PVC sheath. Nominal outer diameter: 5.28mm |
| SHEATH COLOR | Black |

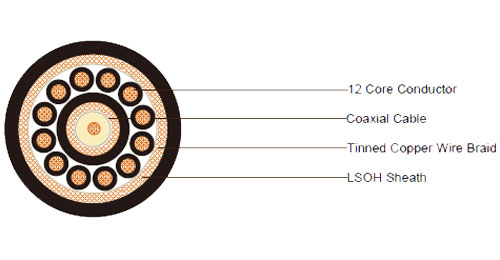

12 Core Conductor
| CONDUCTOR | 7/0.32mm Stranded tinned copper. wires |
|---|---|
| INSULATION | PVC material. Thickness is 0.4mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |
ShieldTinned copper wire braid, coverage 80%
| OUTER SHEATH | LSZH, thickness 0.8mm, nominal outer diameter is 11.05mm |
|---|---|
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Nom. Impedance: 75Ohm
Nom. Capacitance Conductor to Shield: 56.7pF/m (17.3pF/ft)
Nom. Velocity of Propagation: 78%
Nom. Delay: 4.26ns/m (1.3ns/ft)
| FREQ. (MHZ) | ATTENUATION (DB/100M) | ATTENUATION (DB/100FT)) |
|---|---|---|
| 0.5 | 0.8 | 0.24 |
| 1 | 1.1 | 0.34 |
| 5 | 2.4 | 0.73 |
| 10 | 3.4 | 1.04 |
| 100 | 10.6 | 3.23 |
| 200 | 15.3 | 4.67 |
| 400 | 21.69 | 6.62 |
om. Conductor DC Resistance: 0.047 Ohm/m (14.4 Ohm/1000ft) Nom. Inner ShieldDC Resistance: 0.0084 Ohm/m (2.55 Ohm/1000ft) Nom. Attenuation:
Max. Operating Voltage: 300V
Max. Operating Voltage (overall): 300V
Operating TemperatureRange: -30°C to +75°C
Min Bending Radius: 127mm
