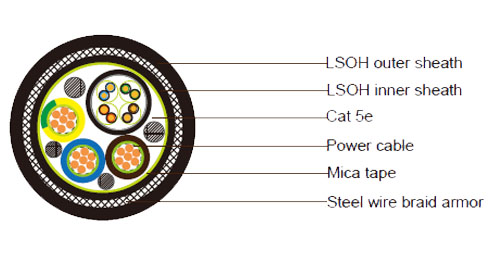

CAT5E 4x2x24AWG
| CONDUCTOR | Solid copper conductor |
|---|---|
| INSULATION | Polyethylene/Silicone Rubber |
| FIRE BARRIER | Mica tape |
| SHEATH | FRLSZH sheath. Nominal outer diameter 9.5mm |
| SHEATH COLOR | Black |
3x2.5mm² Power Cable
| CONDUCTOR
| 2.5mm² Stranded tinned copper wire
|
|---|---|
| FIRE BARRIER | Mica tape |
| INSULATION
| XLPE. Nominal outer diameter 5.0mm
|
| INSULATION COLOR | Blue, Brown and Green/Yellow |
| INNER SHEATH
| PE or PP material
|
|---|---|
| FIRE BARRIER | Mica tape |
| INNER SHEATH | Thermoplastic SHF1, black, thickness 1.0mm |
| ARMOR | Galvanized steel wire braid, coverage 95% |
| OUTER SHEATH | SHF1/SHF Mud, thickness 1.5mm,nominal outer diameter 23.0±1.5mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331
Mud Resistant:NEK606
