DVI Analog Cable(3 Coax, 4 Pair + 1Pair+5c)

CONSTRUCTIONELEMENT 1: 3 COAXIAL(CU/FOAM PE+SKIN/TC BRAID+ PVC)CONDUCTORStranded annealed tinned copper wire, 30AWG(7/38AWG)INSULATIONFoam PE+Skin. Thickness 0.505mm. Outer diameter 1.3+0.07mmSHIELDTinned copper braid, 0.1mm, 90% coverageSHEATHPVC, Th…

DVI Analog Cable(3 Coax, 4 Pair + 1Pair+5c).pdf Contact us

Previous: Composite Cables DVI Analog Cable(3 Coax, 1 Pair + 5c)Next: DVI Analog Cable(3 Coax, 7 Pair + 1Pair+5c)

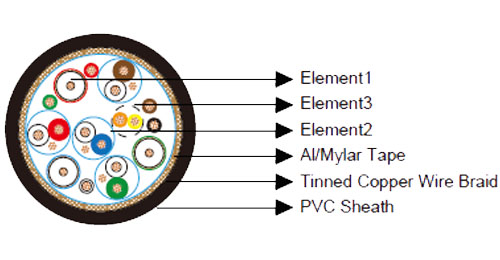

CONSTRUCTION

ELEMENT 1: 3 COAXIAL(CU/FOAM PE+SKIN/TC BRAID+ PVC)

CONDUCTOR	Stranded annealed tinned copper wire, 30AWG(7/38AWG)
INSULATION	Foam PE+Skin. Thickness 0.505mm. Outer diameter 1.3+0.07mm
SHIELD	Tinned copper braid, 0.1mm, 90% coverage
SHEATH	PVC, Thickness 0.219mm. Outer diameter 2.15mm
SHEATH COLOR	Green/Blue/Red

ELEMENT 2: 4PRX28AWG(7/36AWG) STRANDED TC/FOAM PE+SKIN

CONDUCTOR	Stranded annealed tinned copper wire, 7/36AWG
INSULATION	Foam PE+Skin. Thickness 0.25mm. Outer diameter 0.98+0.05mm
INSULATION COLOR	Yellow and orange
INDIVIDUAL SHIELD	Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 28AWG tinned copper drain wire (7 strands formation). A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap.

ELEMENT 3: 1P+5CX28AWG(7/36AWG) STRANDED TC/PE

CONDUCTOR	Stranded annealed tinned copper wire, 7/36AWG
INSULATION	High density polyethylene. Thickness 0.12mm. Outer diameter 0.7+0.05mm
INSULATION COLOR	Black/Brown/Red/Green/White

ELEMENT ASSEMBLY

OVERALL SCREEN	Aluminum/ mylar tape
BRAID SHIELD	Braid of tinned copper wire. 24x9x0.12mm
OUTER SHEATH	LSFROH elastomeric sheath,Thickness 0.51mm. Outer diameter 8.5 +0.2mm, other materail is optional
SHEATH COLOR	Black or as per the client's requirement

PHYSICAL PROPERTIES:

Temperature rating: -25°C to +80°C
Minimum bending radius: 3 x Overall Diameter

ELECTRICAL PROPERTIES:

Rated voltage: 30V
Max conductor resistance at 20°C: 28AWG ≤237 Ohm/Km
30AWG ≤376 Ohm/Km
Min insulation resistance: ≥100M Ohm/m
Nom. differential impedance: Pairs 100+15 Ohm
Coaxial 75 Ohm

FIRE PERFORMANCE IN GENERAL:

Vertical flame propagation for a single insulated wire or cable
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101

FIRE PERFORMANCE RELATING TO ROLLING STOCK APPLICATION:

DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
