1 Pair Power cable and 1 ground wire
| CONDUCTOR | 2.10mm²(42/0.25mm) annealed copper |
|---|---|
| INSULATION | PVC material. Thickness 0.5mm |
| INSULATION COLOR | Black and white |
| GROUND WIRE COLOR | Yellow-Green |
6 Page and party pairs, 1 control wire
| CONDUCTOR | 0.93mm²(19/0.25mm) annealed copper |
|---|---|
| INSULATION | PVC material. Thickness 0.5mm |
| INSULATION PAIR COLOR | Red-Black/Red, Violet-black/violet, Green-black/green, Blue-black/ blue,Yellow-black/yellow, Brown-black/brown |
| CONTROL WIRE COLOR | Orange |

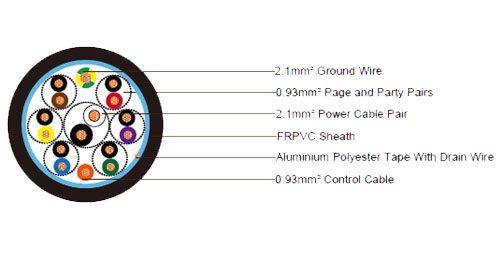

Core make-upSix pairs and control wire laid around power pair and ground wire
| COLLECTIVE SCREEN | Aluminium/p.e.t.p. laminated tape applied with the metallic side down in electrical contact with 7 stranded 0.25mm copper drain wire over the p.e.t.p. binder tape |
|---|---|
| SHEATH | UV Resistant & Vermin Proof FRPVC compound. Thickness 1.8mm, Overall diameter 21.5±1.0mm. |
| SHEATH COLOR | Black |
