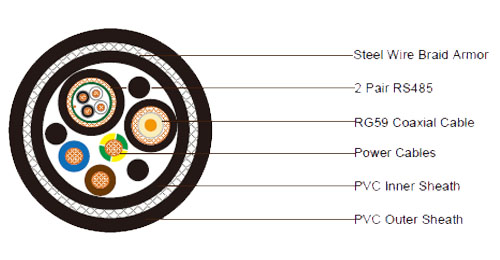

1x75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 85% |
| SHEATH | PVC sheath. Nominal outer diameter 6.2mm |
| SHEATH COLOR | Black |
2 Pair 24AWG RS485
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | PE material. Thickness 0.6mm |
| SHIELD 1 | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
| SHIELD 2 | Tinned copper wire braiding |
| SHEATH | PVC sheath. Nominal outer diameter is 9.0mm |
| SHEATH COLOR | Black |
3x2.5mm² Power Cable
| CONDUCTOR | 2.5mm² Stranded tinned copper wire |
|---|---|
| INSULATION | PVC. Thickness 0.7mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |
| INNER SHEATH | Black PVC, thickness 0.8mm |
|---|---|
| ARMOR | Steel wire braid,coverage 95% |
| OUTER SHEATH | PVC, thickness 1.8mm, nominal outer diameter is 26.0mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz
Nominal Impedance: 120±10Ω
Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
Nominal Attenuation: 1MHz 2.3dB/100m
Electrical Resistance: 7.56Ohm/km
