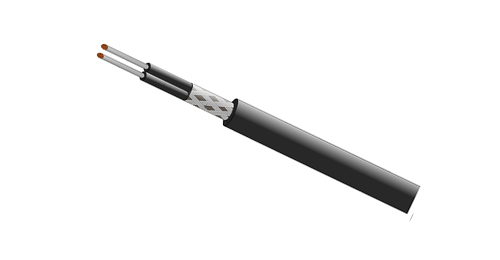

RS 485 Databus Cables (300/500V)

APPLICATION120 Ohm data transmission cables.CONSTRUCTIONMultipair Databus RS 485 Double Screened Cable :ConductorsStranded tin plated copper conductor according to IEC 60228 class 5(0.22mm-1mm).InsulationCross linked Foam PE.Cable ElementTwisted pair.…

RS 485 Databus Cables.pdf Contact us

Previous: Category 5E Data Cables Next: Standard Wall Single Core Unsheathed Cables (500V, 1000V, 1500V, 3000V)

APPLICATION

120 Ohm data transmission cables.

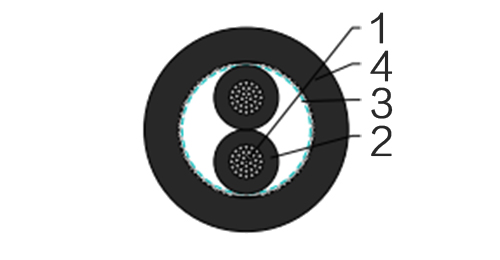

CONSTRUCTION

Multipair Databus RS 485 Double Screened Cable :

Conductors	Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²).
Insulation	Cross linked Foam PE.
Cable Element	Twisted pair.
Individual Screen	Individual Aluminium Tape.
Overall Screen	Copper Wire Braid.
Core Wrapping	Plastic tape(s).
Outer Sheath	Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1.

Multipair Databus RS 485 Single Screened Cable :

Conductor	Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²).
Insulation	Cross linked Foam PE.
Cable Element	Twisted pair.
Overall Screen	Copper Wire Braid.
Outer Sheath	Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1.

ELECTRICAL & MECHANICAL PROPERTIES

Nominal Voltage	300/500V
Impedance	120Ω+/-15%
Capacitance@1KHz	41nF/km
Insulation Resistance	5000MΩ

CHEMICAL & ENVIRONMENTAL PROPERTIE

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

FIRE PERFORMANCE FOR ROLLING STOCK APPLICATION

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN54454-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

FIRE PERFORMANCE IN GENERAL

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

BRAIL MVB-02Y(ST)CH-IOS-XPYS 300/500V

No.of pair x	Nominal Cross Sectional Area y	Number & Nominal Diameter of Strands	Nominal Overall Diameter	Nominal Weight
No.of pair x	mm²	No/mm	mm	kg/km
1	0.22	7/0.2	4.5	58
2	0.22	7/0.2	6.2	79
4	0.22	7/0.2	6.5	118
1	0.5	16/0.2	6.6	79
2	0.5	16/0.2	9.0	105
4	0.5	16/0.2	9.8	145
1	0.75	24/0.2	9.5	115
2	0.75	24/0.2	10.3	135
4	0.75	24/0.2	11.6	182
1	1	30/0.2	11.5	125
2	1	30/0.2	12.5	150
4	1	30/0.2	13.5	180

BRAIL MVB-02YCH-OS-XPYS 300/500V

No.of pair x	Nominal Cross Sectional Area y	Number & Nominal Diameter of Strands	Nominal Overall Diameter	Nominal Weight
No.of pair x	mm²	No/mm	mm	kg/km
1	0.22	7/0.2	4.2	55
2	0.22	7/0.2	5.9	75
4	0.22	7/0.2	6.2	115
1	0.5	16/0.2	6.3	75
2	0.5	16/0.2	8.5	100
4	0.5	16/0.2	9.4	140
1	0.75	24/0.2	9.0	110
2	0.75	24/0.2	9.7	130
4	0.75	24/0.2	11.1	178
1	1	30/0.2	11.0	120
2	1	30/0.2	12.0	145
4	1	30/0.2	13.0	175
