APPLICATION

The cables are used as connecting cables to transmit digital signals inside railway rolling stocks.

STANDARD

• DIN 5510-1

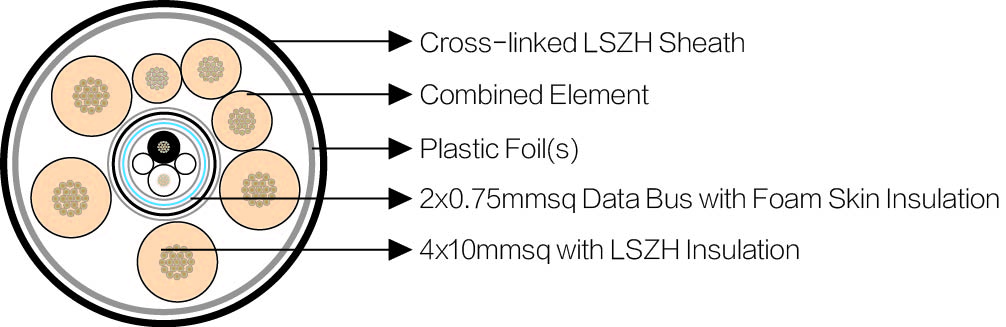

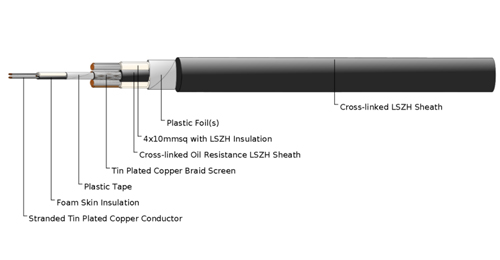

CABLE CONSTRUCTION

4 cores: 10 mm^2 stranded tinned copper conductor with LSZH insulation.For 9 cores UIC databus cables:

• Combined Element: 3 cores (with Cu-strand 2×6mm^2, 1×2.5mm^2) are twisted with a fi lling element to a combined element. Wrapping: Overlapped plasticfoil(s). Elements sheaths: TPE

• UIC Data Bus 0.75mm^2: Two foam skin insulated tinned copper stranded conductors are twisted together with two fi lling elements to a pair.

• Wrapping: Overlapped plastic-foil(s).

• Screen: Tinned copper wire braid screen

• Element sheaths: TPE.

• Wrapping: Overlapped plastic-foil(s).

• Stranding: 4 strands are twisted to a core together with 3 cored element, the UIC data bus and two fi llers

• Core Wrapping: Overlapped plastic-foil(s).

• Outer Sheath: Cross-linked oil resistant LSZH compound.

For 11 cores UIC databus cables:

• 4 cores: 10 mm^2 stranded tinned copper conductor with LSZH insulation.

• Combined Element: 5 cores (with Cu-strand 2×6mm^2, 1×2.5mm^2 and 2×1.0 mm^2) are twisted with a fi lling element to form a combined element.

• Wrapping: Overlapped plastic-foil(s).

• Elements sheaths: TPE.

• UIC Data Bus 0.75mm^2: Two foam skin insulated tinned copper r stranded conductors are twisted together with two fi lling elements to a pair.

• Wrapping: Overlapped plastic-foil(s).

• Screen: Tinned copper wire braid screen.

• Element sheaths: TPE.

• Wrapping: Overlapped plastic-foil(s).

• Stranding: 4 strands are twisted to a core together with 5 cored element, the UIC data bus and two fi llers.

• Core Wrapping: Overlapped plastic-foil(s).

• Outer Sheath: Cross-linked oil resistant LSZH compound.

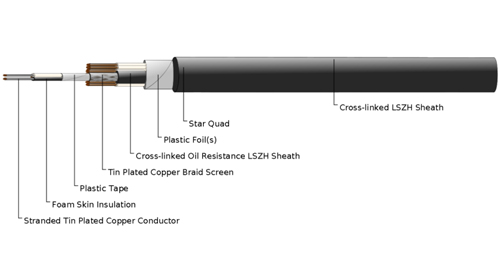

For 18/20 cores UIC databus cables:

• Star Quad: Four LSZH insulated 1mm^2 stranded tinned copper conductors are twisted to form a star quad.

• UIC Data Bus 0.75mm^2: Two foam skin insulated tinned copper stranded conductors are twisted together with two fi lling elements to form a pair.

• Wrapping: Overlapped plastic-foil(s)

• Screen: Tinned copper wire braid screen

• Element sheaths: TPE.

• Wrapping: Overlapped plastic-foil(s)

• Stranding: 4 star quads are stranded together with 2 or 4 UIC data bus cable and several fi llers.

• Core Wrapping: Overlapped plastic-foil(s).

• Screen: Tinned copper-wire braid screen.

• Outer Sheath: Cross-linked oil resistant LSZH compound.

ELECTRICAL CHARACTERISTICS AT 20℃

MECHANICAL AND THERMAL PROPERTIES

• Minimum Bending Radius: 6×OD (single); 12×OD (multiple)

• Temperature Range: -40℃ to +90℃ (during operation); -20℃ +50℃ (during installation)

DIMENSIONS AND WEIGHT
