These cables are designed for surface wiring where there is little risk of mechanical damage and are suitable for use in electrical installations such as power and lighting.

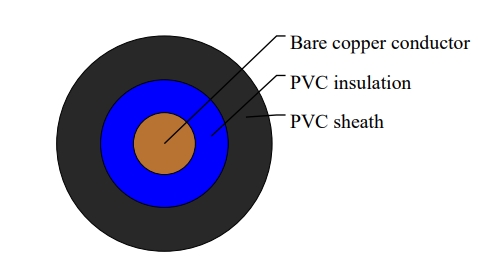

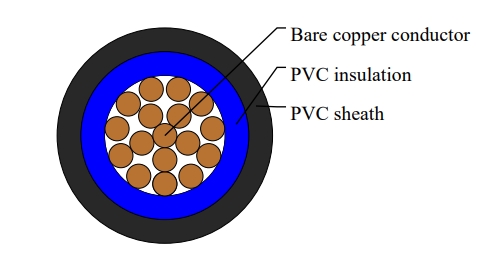

- Bare copper conductor
- Solid to BS 6360 CL-1 or IEC 60228 CL-1; stranding to BS 6360 CL-2 or IEC 60228 CL-2

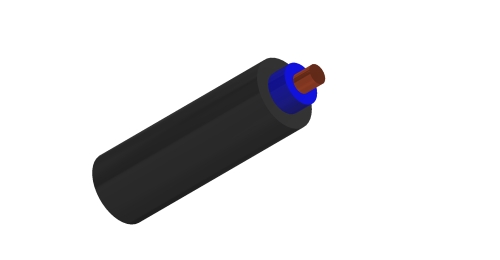

1.0mm^2- 2.5mm CL-1 – circular solid

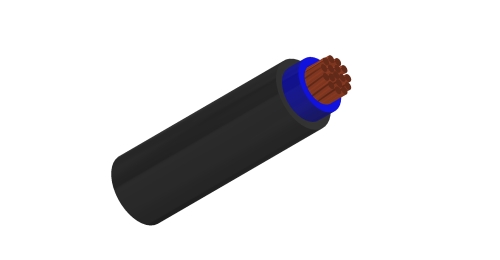

4mm^2 and above - CL-2 – stranded circular or circular compacted
- PVC insulation Type TI1 to BS7655
- PVC sheath Type 6 to BS7655
Black, Blue, Brown
- Working voltage: 300/500V
- Minimum bending radius: 3xoverall diameter
- Operating temperature: -15o C to +70o C
- Insulation resistance: 10 MΩxkm
- Flame retardant: IEC 60332.1
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm^2 | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 18 | 1x1 | 0.6 | 0.8 | 4.5 | 27 |
| 16 | 1x1.5 | 0.7 | 0.8 | 4.9 | 36 |
| 14 | 1x2.5 | 0.8 | 0.8 | 5.8 | 52 |
| 12(7/20) | 1x4 | 0.9 | 0.9 | 6.8 | 76 |
| 10(7/18) | 1x6 | 0.8 | 0.9 | 7.4 | 100 |
| 8(7/16) | 1x10 | 1 | 0.9 | 8.8 | 160 |
| 6(7/14) | 1x16 | 1 | 1 | 10.5 | 230 |
| 4(7/12) | 1x25 | 1.2 | 1.1 | 12.5 | 340 |
| 2(7/10) | 1x35 | 1.2 | 1.1 | 13.5 | 440 |
