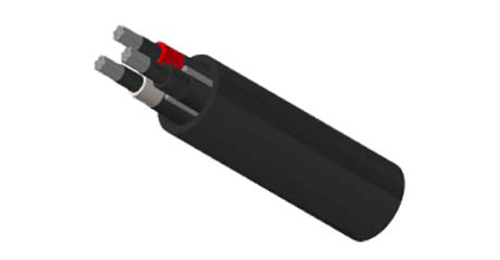

The Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 25kV is a high-performance cable specifically designed for harsh environments, capable of meeting the power supply needs of heavy-duty equipment under complex operating conditions. Its robust and durable structure, combined with outstanding performance, makes it an ideal choice for mining, construction, and industrial sectors.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

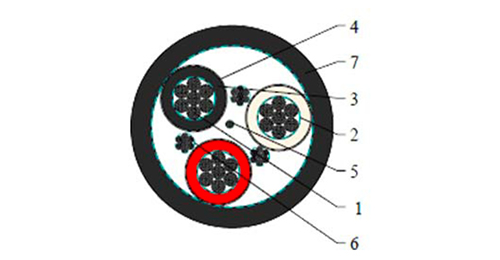

| Conductors | Stranded annealed tinned copper conductor. |
|---|---|
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting tape + Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. |
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
| Minimum Bending Radius | 8×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores × AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×1 | 259 | 5 | 8 | 0.260 | 6.6 | 0.265 | 6.7 | 2.95 | 74.9 | 5290 | 7872 | 191 |
| 3×1/0 | 259 | 4 | 8 | 0.260 | 6.6 | 0.265 | 6.7 | 3.05 | 77.5 | 5800 | 8631 | 218 |
| 3×2/0 | 329 | 3 | 8 | 0.260 | 6.6 | 0.280 | 7.1 | 3.20 | 81.3 | 6515 | 9695 | 249 |
| 3×3/0 | 413 | 2 | 8 | 0.260 | 6.6 | 0.280 | 7.1 | 3.33 | 84.6 | 7215 | 10737 | 286 |
| 3×4/0 | 532 | 1 | 8 | 0.260 | 6.6 | 0.295 | 7.5 | 3.50 | 88.9 | 8250 | 12277 | 327 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
