1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable
CONSTRUCTION1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)CONDUCTOR1.63mm Solid bare copperINSULATIONPolyethylene.Thickness 7.25mm.SHIELDBraidofbare copperwire.Coverage95%SHEATHLSZH sheath. Nominalouterdiameteris10.3mm.SHEATH COLORBlack…
1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWGData Pairs Unarmoured PVC SheathedComposite Cable.pdf Contact us
Previous: 3x2.5 Power Cable+4C Fiber Optic Cable SWA LSZH Sheathed Composite CableNext: 1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs SWB PVC Sheathed Composite Cable

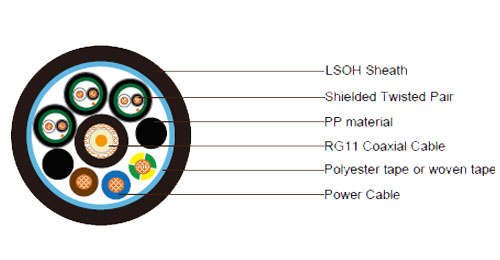

CONSTRUCTION

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

CONDUCTOR1.63mm Solid bare copper
INSULATIONPolyethylene.Thickness 7.25mm.
SHIELDBraidofbare copperwire.Coverage95%
SHEATHLSZH sheath. Nominalouterdiameteris10.3mm.
SHEATH COLORBlack

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

CONDUCTOR7/0.254mm Strandedtinnedcopper.
INSULATIONPVCmaterial.Thickness 0.50mm.
INSULATION COLORWhite andblack
INDIVIDUAL SHIELDAluminum polyester tape
DRAIN WIRE24AWGstrandedtinnedcopper
SHEATHPVCsheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
SHEATH COLORBlack withwhitenumber code

3x2.5mm² Power Cable ( around coaxial cable)

CONDUCTOR2.5mm² Strandedtinnedcopper wire.
INSULATIONXLPE.Outerdiameter3.41mm
INSULATION COLORBlue,Brown and Green/Yellow

ELEMENT ASSEMBLY

FILLERPPmaterial(aroundcoaxialcable)
WRAPPINGTAPEPolyestertape orwoven tape
OUTER SHEATHPVC,thickness1.6mm,nominalouterdiameter25.0mm
SHEATH COLORBlack
CABLE WEIGHT480kg/km

ELECTRICAL AND PHYSICAL PROPERTIES@20°C:

Coaxial Cable

Impedance : 75±3Ohm (@1MHz)

Max.Attenuation : 3.3dB/100m @50MHz

Power Cable

Electrical Resistance : 7.41Ohm/km

Insulation Resistance : ≥5500 MOhmxkm

Data Pairs

Electrical Resistance : 49Ohm/km

Insulation Resistance : ≥1000 MOhmxkm
