1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs SWB PVC Sheathed Composite Cable
CONSTRUCTION1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)CONDUCTOR1.63mm Solid bare copperINSULATIONPolyethylene.Thickness 7.25mm.SHIELDBraidofbare copperwire.Coverage95%SHEATHPVCsheath. Nominalouterdiameteris10.3mm.SHEATH COLORBlack3x…
1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWGData Pairs SWB PVC Sheathed CompositeCable.pdf Contact us
Previous: 1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite CableNext: 1xRG11 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

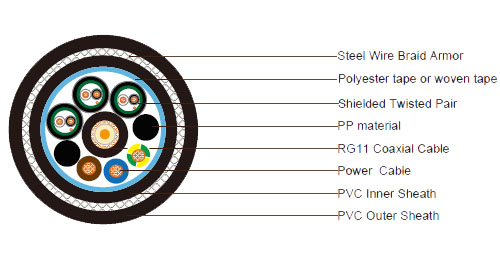

CONSTRUCTION

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

CONDUCTOR1.63mm Solid bare copper
INSULATIONPolyethylene.Thickness 7.25mm.
SHIELDBraidofbare copperwire.Coverage95%
SHEATHPVCsheath. Nominalouterdiameteris10.3mm.
SHEATH COLORBlack

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

CONDUCTOR7/0.254mm Strandedtinnedcopper.
INSULATIONPVCmaterial.Thickness 0.50mm.
INSULATION COLORWhite andblack
INDIVIDUAL SHIELDAluminum polyester tape
DRAIN WIRE24AWGstrandedtinnedcopper
SHEATHPVCsheath.Thickness0.8mm.
SHEATH COLORBlack withwhitenumber code

3x2.5mm² Power Cable ( around coaxial cable)

CONDUCTOR2.5mm² Strandedtinnedcopper wire.
INSULATIONXLPE.Outerdiameter3.41mm
INSULATION COLORBlue,Brown and Green/Yellow

ELEMENTASSEMBLY

FILLERPPmaterial(aroundcoaxialcable)
WRAPPINGTAPEPolyestertape orwoven tape.
INNER SHEATHBlackPVC,thickness1.0mm
ARMORSteelwire braid, dia. 0.2mm,coverage85%
OUTER SHEATHPVC,thickness1.8mm,nominalouterdiameter28.3mm
SHEATH COLORBlack
CABLE WEIGHT550kg/km

Electrical and Physical Properties @20°C:

COAXIAL CABLE

Impedance: 75±3Ohm (@1MHz)
Max.Attenuation: 3.3dB/100m@50MHz

POWER CABLE

Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm

DATA PAIRS

Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
