1x2x2.5mm² Power Cable
| CONDUCTOR | 2.5mm² annealed copper |
|---|---|
| INSULATION | XLPE material. |
| INSULATION COLOR | Black and white |

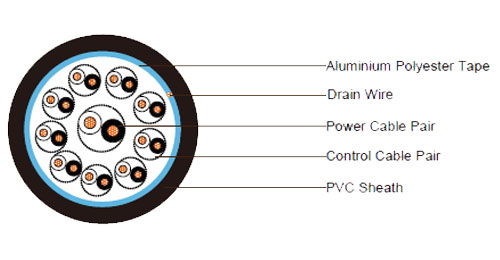

9x1x2x1.0mm² Control Cable
| CONDUCTOR | 1.0mm² annealed copper |
|---|---|
| INSULATION | PE material. |
| INSULATION COLOR | Black and white with pair number |
| SHIELD | Aluminium polyester tape |
|---|---|
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | PVC sheath. Nominal outer diameter 25.5mm. Thickness 1.8mm |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 477 kg/km |
Electrical and Physical Properties @20°C:
Max. Conductor Resistance: 7.41Ohm/km at 20ºC
Max. Conductor Resistance: 18.5Ohm/km at 20ºC
Operating Temperature: -20°C/+90°C
Voltage Rating: 600/1000V
