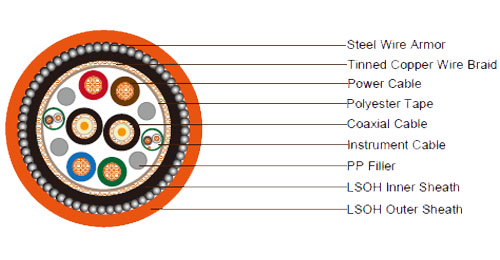

| CONDUCTOR | 7/0.22mm no oxygen copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 0.92mm |
| SHIELD | 0.12mmbare copper wire braided, coverage ca.85% |
| SHEATH | LSZH, thickness: 0.8mm; Norminal outer diameter 4.5±0.3mm |
| SHEATH COLOR | Black |
| CONDUCTOR | 7/0.68mm stranded no oxygen copper |
|---|---|
| INSULATION | LSZH material. Thickness 0.8mm; outer diameter 3.7±0.2mm |
| INSULATION COLOR | Red, blue, green, yellow |
| CONDUCTOR | 7/0.22mm stranded tinned copper |
|---|---|
| INSULATION | PE material. Thickness 0.50mm, outer diameter 1.6±0.2mm |
| INSULATION COLOR | White/ blue; white/orange |
| SHIELD | Aluminum-plastic compounded tape with 7/0.22mm tinned copper draining wire |
| FILLER | Non-absorbent Polypropylene |
|---|---|
| WRAPPING TAPE | Polyestertape |
| SHIELD | Tinned copper wire braided, coverage ca.80% |
| INNER SHEATH | Black LSOH, thickness: 1.0mm |
| ARMOR | 0.30mm galvanized steel(single φ wire braided; coverage ca.80% |
| OUTER SHEATH | LSZH , thickness: 1.7mm, Norminal outer diameter23.1±1.0mm |
| SHEATH COLOR | Orange |
| CABLE WEIGHT | 735 kg/km |
Electrical and Physical Properties @20°C:
Impedance: 75±3Ohm (@1MHz) Max. Attenuation: 3dB/100m Capacity: 55pF/m nominal at 1kHz
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm Element Assembly
Min Bending Radius: 280mm
Operating Temperature: -35°C/+90°C
Long term operation temperature of cable conductor: 90°C
Max temperature of cable conductor during short circuit: ≤250°C
