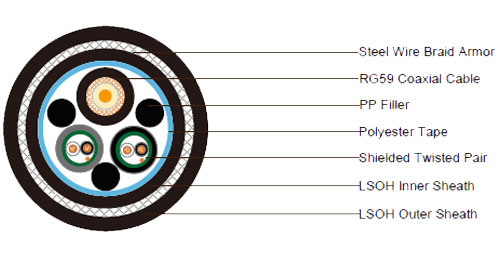

1x75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 95% |
| SHEATH | LSZH sheath. Nominal outer diameter 6.15mm |
| SHEATH COLOR | Black |
2 x (1 x 2 x 24AWG) Shielded Twisted Pair
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | PVC material. Thickness 0.6mm |
| INSULATION COLOR | Black and white |
| SHIELD | Aluminium polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm |
| SHEATH COLOR | Black and Grey |
| FILLER | PE or PP material when necessary |
|---|---|
| WRAPPING TAPE | Polyester tape or woven tape |
| INNER SHEATH | Black LSZH, thickness 0.8mm |
| ARMOR | Steel wire braid,coverage 85% |
| OUTER SHEATH | LSZH, thickness 1.5mm, nominal outer diameter is 16.25±2.0mm |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 400kg/km |
Electrical and Physical Properties @20°C:
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Electrical Resistance: 90Ohm/km Insulation Resistance: ≥1000 MOhmxkm Element Assembly
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
