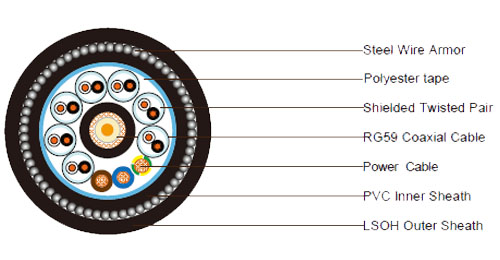

1x75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 95% |
| SHEATH | PVC sheath. Nominal outer diameter 6.15mm |
| SHEATH COLOR | Black |
7x1x2x22 AWG Shielded Twisted Pair Data Cables
| CONDUCTOR | 22AWG Stranded tinned copper |
|---|---|
| INSULATION | PE material. Thickness 0.6mm |
| INSULATION COLOR | Black and white with numbering |
| INDIVIDUAL SHIELD | Aluminium polyester tape with stranded tinned copper drain wire |
3x16AWG Power Cable
| CONDUCTOR | 16AWG Stranded tinned copper wire |
|---|---|
| INSULATION | XLPE. Thickness 0.7mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |
| FILLER | PP material if necessary |
|---|---|
| WRAPPING TAPE | Polyester tape |
| INNER SHEATH | 1.2mm PVC compound |
| ARMOR | Galvanized steel wire |
|
OUTER SHEATH | An outer protection of extruded UV resisting, anti-rodent and anti-termite LSZH compound is applied over armor. Thickness: 2.0mm. Nominal outer diameter is 28.0mm. |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 510kg/km |
Min Bending Radius: 560mm
Operating Temperature: -30°C/+70°C
