1x75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 95% |
| SHEATH | LSZH sheath. Nominal outer diameter 6.15mm |
| SHEATH COLOR | Black |
2x1x2x24 AWG Shielded Control Cable Without Sheath
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | PVC material. Thickness 0.4mm |
| INSULATION COLOR | White and black |
| SHIELD | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire |
3x1.5mm² Power Cable
| CONDUCTOR | 1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360 |
|---|---|
| INSULATION | XLPE compound to BS6234. Nominal outer diameter 3.0mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |

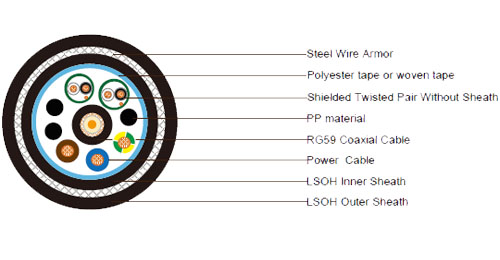

Element Assembly
| FILLER | PP, PVC or PE |
|---|---|
| WRAPPING TAPE | Polyester tape |
| INNER SHEATH | Black LSZH, thickness 0.76mm |
| ARMOR | 0.2mm steel wire interwoven braid,coverage 95% |
| OUTER SHEATH | LSZH, thickness 1.4mm, nominal outer diameter is 19.0mm |
| SHEATH COLOR | Black |
Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C
Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
