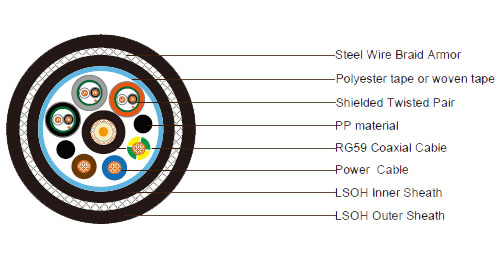

1x75Ohm RG59 Coaxial Cable( in the center of the cable core)
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 92% |
| SHEATH | LSZH sheath. Nominal outer diameter 6.2mm |
| SHEATH COLOR | Black |
3x1x2x24/7 AWG Shielded Twisted Pair ( around coaxial cable)
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | PVC material. Thickness 0.47mm |
| INSULATION COLOR | Black and white |
| SHIELD | Aluminium polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm |
| SHEATH COLOR | Black , Grey and Orange |
3x3mm² Power Cable ( around coaxial cable)
| CONDUCTOR | 3.0mm² Stranded tinned copper wire |
|---|---|
| INSULATION | XLPE. Thickness 0.85mm. Outer diameter 3.65mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |
| FILLER | PVC or PE material (around coaxial cable) |
|---|---|
| WRAPPING TAPE | Polyester tape |
| INNER SHEATH | Black LSZH, thickness 0.8mm |
| ARMOR | Steel wire braid,coverage 85% |
| OUTER SHEATH | LSZH, thickness 1.5mm, nominal outer diameter is 22.0mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Max. Electrical Resistance: 158Ohm/km
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Electrical Resistance: 6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Flame Propagation: IEC60332-1 & IEC60332-2
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
