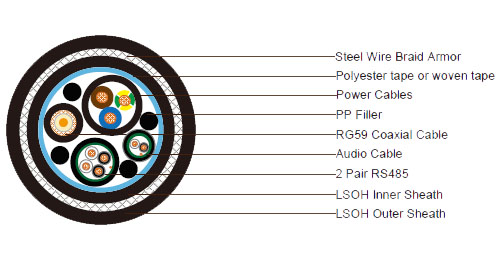

75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.81mm Copper Covered Steel Wire |
|---|---|
| INSULATION | Polyethylene. Diameter 3.65mm |
| SHIELD | Bonded Al screen and braid of Al-Mg wire. Coverage:80% |
| SHEATH | LSZH sheath. Nominal outer diameter is 6.1mm |
| SHEATH COLOR | Black |
24AWG RS485
| CONDUCTOR | 24AWG (7/0.2mm Stranded tinned copper to IEC 60228 Class 2 2 pairs |
|---|---|
| INSULATION | Polyethylene. Thickness 0.6mm |
| SHIELD | Aluminium polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | LSZH sheath. Nominal outer diameter is 9.0mm |
| SHEATH COLOR | Black |
3x2.5mm² Power Cable
| CONDUCTOR | 2.5mm² Stranded tinned copper wire to IEC 60228 Class 2 |
|---|---|
| INSULATION | XLPE. Thickness 0.7mm |
| SHEATH | LSZH sheath. Nominal outer diameter is 12.0mm |
| SHEATH COLOR | Black |
18AWG Audio Cable
| CONDUCTOR | 1 pair 18AWG (16/0.254mm Stranded tinned copper |
|---|---|
| INSULATION | Polyethylene |
| SHIELD | Aluminium polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | LSZH sheath. Nominal outer diameter is 6.5mm |
| SHEATH COLOR | Black |
| FILLER | PP, PVC or PE |
|---|---|
| WRAPPING TAPE | Polyester tape |
| INNER SHEATH | Black LSZH, thickness 0.8-1.0mm |
| ARMOR | Steel wire braid,coverage 95% |
| OUTER SHEATH | LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 24±2mm |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 730kg/km |
Electrical and Physical Properties @20°C:
Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 6.72dB/100m @50MHz
Nominal Impedance: 120±10Ω
Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
Nominal Attenuation: 1MHz 2.3dB/100m
Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Audio Cable
Electrical Resistance: 18.1Ohm/km
Insulation Resistance: ≥1.1 MOhm .km
Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
