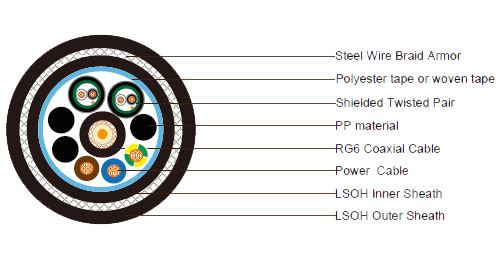

CONSTRUCTION
1X75OHM RG6 COAXIAL CABLE ( IN THE CENTER OF THE CABLE CORE)
| CONDUCTOR | 1.02mm Solid bare copper |
|---|
| INSULATION | Polyethylene. Diameter 4.57mm. |
|---|
| SHIELD 1 | Al-Polyester Tape |
|---|
| SHIELD 2 | Braid of bare copper wire. Coverage:95% |
|---|
| SHEATH | LSZH sheath. Nominal outer diameter is 6.91mm. |
|---|
| SHEATH COLOR | Black |
|---|
2X1X2X22AWG SHIELDED TWISTED PAIR ( AROUND COAXIAL CABLE)
| CONDUCTOR | 7/0.254mm Stranded tinned copper. |
|---|
| INSULATION | PVC material. Thickness 0.50mm. |
|---|
| INSULATION COLOR | White and black |
|---|
| INDIVIDUAL SHIELD | Aluminum polyester tape |
|---|
| DRAIN WIRE | 24 AWG stranded tinned copper |
|---|
| SHEATH | LSZH sheath. Thickness 0.5mm. |
|---|
| SHEATH COLOR | Black with white number code |
|---|
3X2.5MM² POWER CABLE ( AROUND COAXIAL CABLE)
| CONDUCTOR | 2.5mm² Stranded tinned copper wire. |
|---|
| INSULATION | XLPE. Outer diameter 3.6mm |
|---|
| INSULATION COLOR | Blue, Brown and Green/Yellow |
|---|
ELEMENT ASSEMBLY
| FILLER | PE or PP material |
|---|
| WRAPPING TAPE | Polyester tape or woven tape |
|---|
| INNER SHEATH | Black LSZH, thickness 0.75mm |
|---|
| ARMOR | Steel wire braid, dia. 0.2mm, coverage 95% |
|---|
| OUTER SHEATH | LSZH, thickness 1.5mm, nominal outer diameter 21.0mm. Approx. |
|---|
| SHEATH COLOR | Black |
|---|
| CABLE WEIGHT | 485kg/km |
|---|
ELECTRICAL AND PHYSICAL PROPERTIES@20°C:
COAXIAL CABLE
Conductor Resistance @ 20°C : 22 ohm/km
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 5.2dB/100m @50MHz
POWER CABLE
Conductor Resistance @ 20°C: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 49Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
