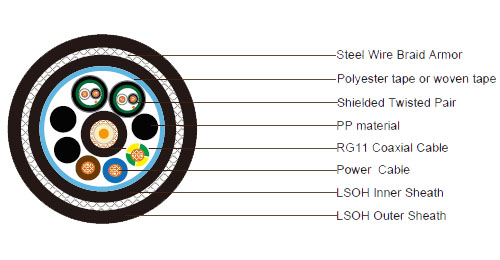

| CONDUCTOR | 1.63mm Solid bare copper |
|---|---|
| INSULATION | Polyethylene.Thickness 7.25mm. |
| SHIELD | Braidofbare copperwire.Coverage95% |
| SHEATH | LSZH sheath. Nominalouterdiameteris10.3mm. |
| SHEATH COLOR | Black |
| CONDUCTOR | 7/0.2mm Strandedtinnedcopper. |
|---|---|
| INSULATION | PVCmaterial.Thickness 0.47mm. |
| INSULATION COLOR | White andblack |
| INDIVIDUAL SHIELD | Aluminum polyester tape |
| DRAIN WIRE | 24AWGstrandedtinnedcopper |
| SHEATH | LSZHsheath.Nominal outer diameter 4.8mm.Thickness0.76mm. |
| SHEATH COLOR | BlackandGrey |
| CONDUCTOR | 12AWG(3mm²Strandedtinnedcopper wire. |
|---|---|
| INSULATION | XLPE.Thickness0.85mm.Outerdiameter3.65mm |
| INSULATION COLOR | Blue,Brown and Green/Yellow |
| FILLER | PPmaterial(aroundcoaxialcable) |
|---|---|
| WRAPPINGTAPE | Polyestertape. |
| INNER SHEATH | BlackLSZH,thickness0.8mm |
| ARMOR | Stainlesssteel wirebraid, coverage 85% |
| OUTER SHEATH | LSZH,thickness1.5mm,nominalouterdiameter26.0mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties@20°C:
Impedance: 75±3Ohm (@1MHz)
Max.Attenuation:3.3dB/100m@50MHz
ElectricalResistance:6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Min Bending Radius:420mm
Operating Temperature:-35°C/+80°C
Flame Propagation:IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
