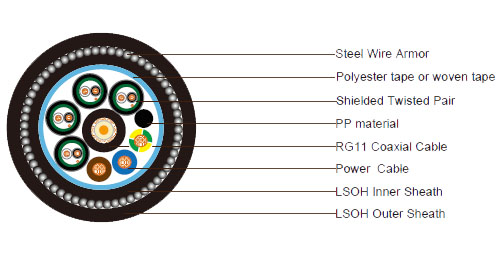

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)
| CONDUCTOR | 1.63mm Solid bare copper |
|---|---|
| INSULATION | Polyethylene. Diameter 7.25mm. |
| SHIELD | Braid of bare copper wire. Coverage 95% |
| SHEATH | LSZH sheath. Nominal outer diameter is 10.3mm. |
| SHEATH COLOR | Black |
4x1x2x24AWG Shielded Twisted Pair data cable ( around coaxial cable)
| CONDUCTOR | 7/0.2mm Stranded tinned copper. |
|---|---|
| INSULATION | PVC material. Thickness 0.5mm. |
| INSULATION COLOR | White and black |
| INDIVIDUAL SHIELD | Aluminum polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper |
| SHEATH | LSZH sheath. Thickness 0.80mm. |
| SHEATH COLOR | Black with white number code |
3x2.5mm² Power Cable ( around coaxial cable)
| CONDUCTOR | 2.5mm² Stranded tinned copper wire. |
|---|---|
| INSULATION | XLPE. Outer diameter 3.41mm |
| INSULATION COLOR | Blue, Brown and Green/Yellow |
| FILLER | PP material (around coaxial cable) |
|---|---|
| WRAPPING TAPE | Polyester tape or woven tape |
| INNER SHEATH | Black LSZH, thickness 1.1mm |
| ARMOR | Steel wire armor,dia. 1.25mm |
| OUTER SHEATH | LSZH, thickness 1.8mm, nominal outer diameter 26.0±1.0mm |
| SHEATH COLOR | Black |
| CABLE WEIGHT | 1100kg/km |
Electrical and Physical Properties@20°C:
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 3.3dB/100m @50MHz
Electrical Resistance: 7.41Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Conductor DC resistance per km@20°C:
24AWG: 95.8ohm/km 2.5mm²: 7.4ohm/km 1.63mm: 9.26ohm/km
Minimum Bending Radius: 312mm
Temperature Range: -10°C~70°C
Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
